Omni Server Antennas
ADRF’s low-pim omni server antenna provides excellent signal strength quality, transmitting and receiving multiple RF bands simultaneously between the coaxial cable and wireless devices. Our omni server antennas cover all commercial and public safety frequencies and can be easily mounted on a ceiling, allowing for quick setup.
Omni Server Antenna Products
AD-OMNI-4T4R-4310
AD-OMNI-SISO-N-X
AD-OMNI-SISO-N
AD-OMNI-SISO-4310
AD-OMNI-SISO-4310-X

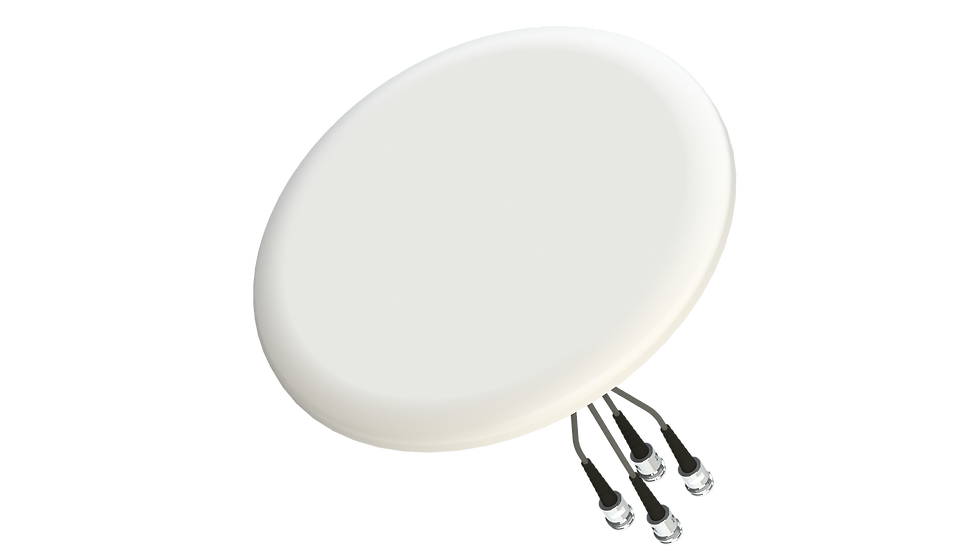

AD-OMNI-4T4R-4310
-
4x4 MIMO Omni Antenna
-
Slim Low Profile Antenna (under 1" thickness)
-
Frequency Support from 617 ~ 5900MHz
-
Low-PIM 4.3-10 Connectors

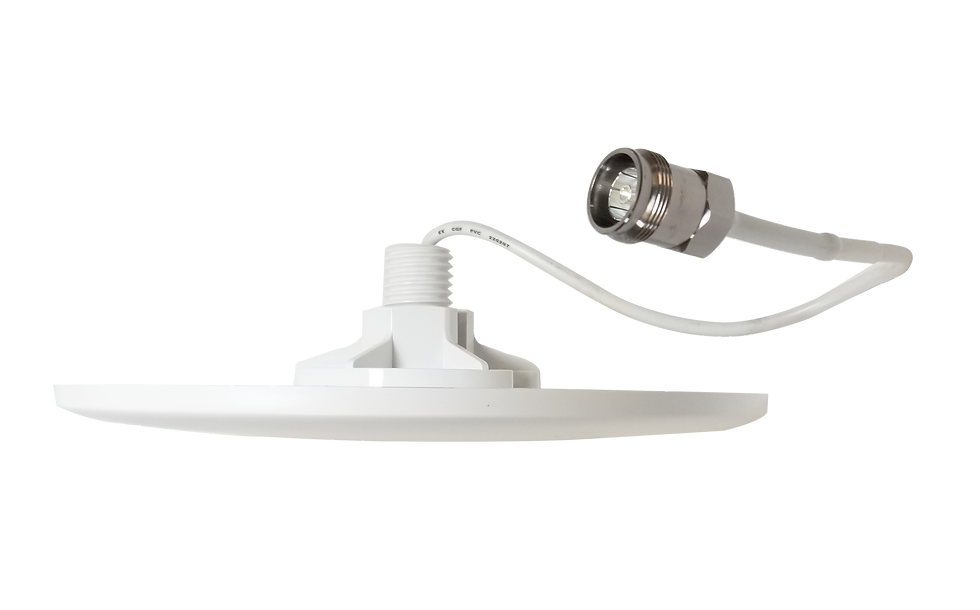

AD-OMNI-SISO-4310-X
-
Frequency Range: 617~960 / 1695~2200 / 2300~2700 / 3300~4200 / 4900~6000 MHz
-
Max Power Rating: 70W
-
Impedance: 50 Ohm
-
Connector: 4310 Female
-
Mounting: Ceiling
AD-OMNI-SISO-4310
-
Frequency Range: 698~960 / 1710~2700 MHz
-
Max Power Rating: 50W
-
Impedance: 50 Ohm
-
Connector: 4.3-10 Female
-
Mounting: Ceiling

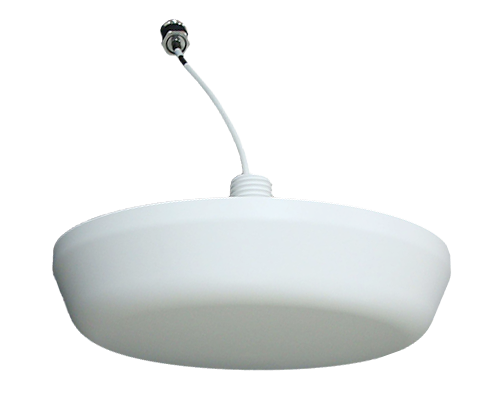

AD-OMNI-SISO-N
-
Frequency Range: 698~960 / 1710~2700 MHz
-
Max Power Rating: 50W
-
Impedance: 50 Ohm
-
Connector: N-Type Female
-
Mounting: Ceiling

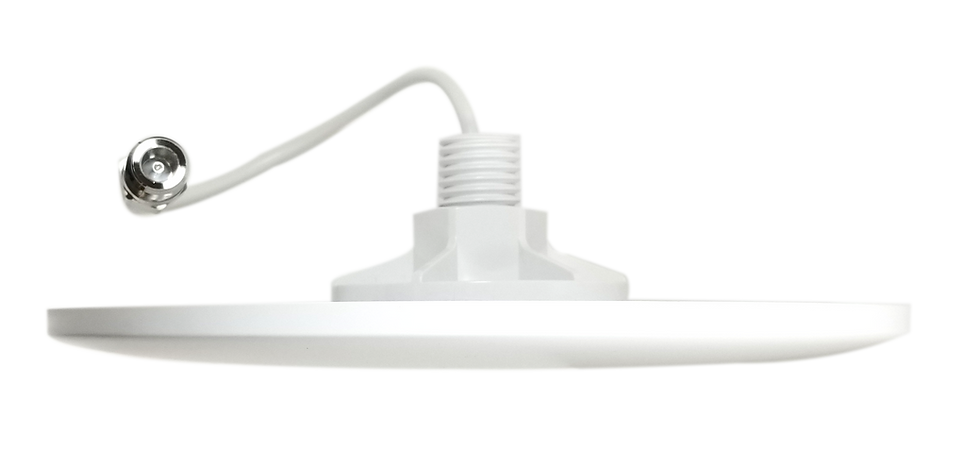

AD-OMNI-SISO-N-X
-
Frequency Range: 617~960 / 1695~2200 / 2300~2700 / 3300~4200 / 4900~6000 MHz
-
Max Power Rating: 70W
-
Impedance: 50 Ohm
-
Connector: N-Type Female
-
Mounting: Ceiling
