Hybrid Couplers

ADRF's hybrid couplers are ideal for complex applications, enforcing very low passive intermodulation, minimizing RF insertion loss, and enabling multiband frequency coverage.

ADRF Hybrid Couplers

ADRF-DCPL-6/10-

4310

ADRF-HCPL-3-4310

ADRF-CBC-700-2600-4310

ADRF-DCPL-6/10-N-LPIM

ADRF-HCPL-3-N-LPIM

ADRF-CBC-700-2600-LPIM

ADRF-CBC-80-2700-S

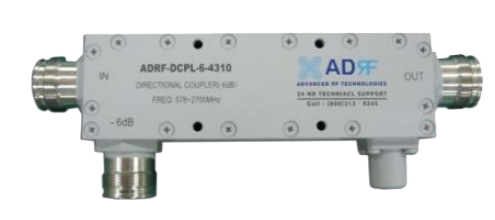

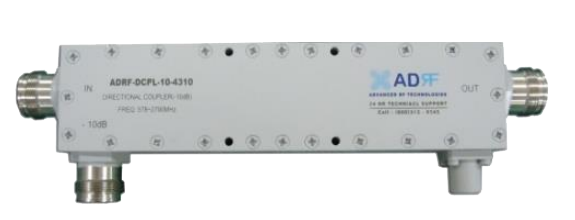

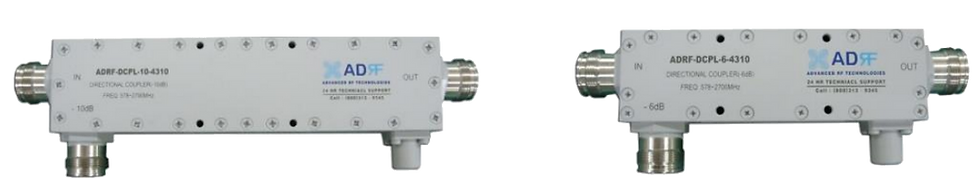

ADRF-DCPL-6/10-4310

  • 6/10 dB Direction Coupler w/ 4.3-10

  • Frequency Range: 578 ~ 2,700 MHz

  • Passive Intermodulation: 161 dBc @ 2 tone x 43 dBm

  • Impedance: 50 Ω

  • Connector: 4.3-10 Female

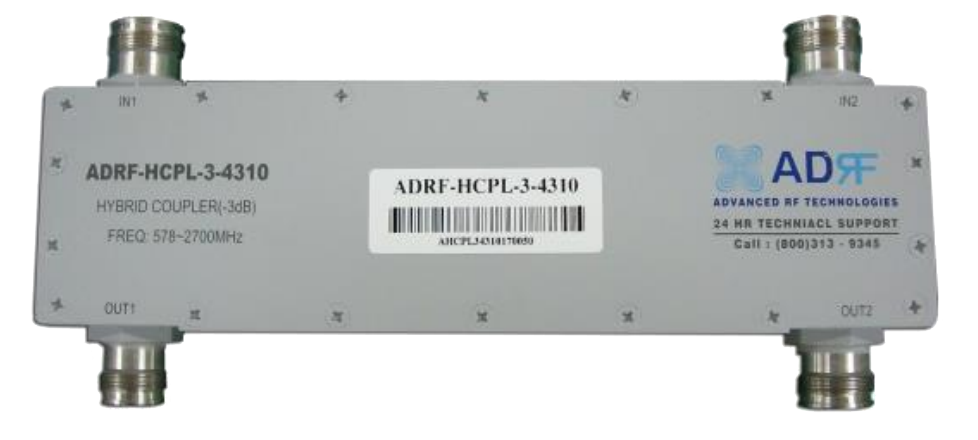

ADRF-HCPL-3-4310

  • 3dB Hybrid Coupler

  • Frequency Range: 578 ~ 2,700 MHz

  • Insertion Loss: 3.8 dB (Max)

  • Passive Intermodulation: 161 dBc @ 2 tone x 43 dBm

  • Impedance: 50 Ω

  • Connector: 4.3-10 Female

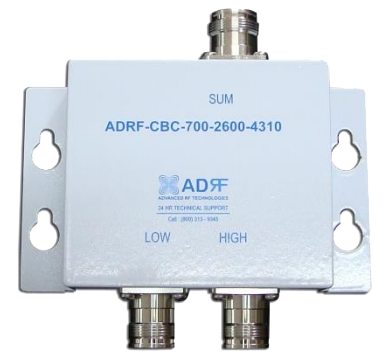

ADRF-CBC-700-2600-4310

  • Cross Band Coupler w/ 4.3-10

  • Frequency Range: 698 ~ 940  / 1710 ~ 2690 MHz

  • Insertion Loss: 0.3 dB (Max)

  • Passive Intermodulation: 153 dBc @ 2 tone x 43 dBm

  • Impedance: 50 Ω

  • Connector: 4.3-10 Female

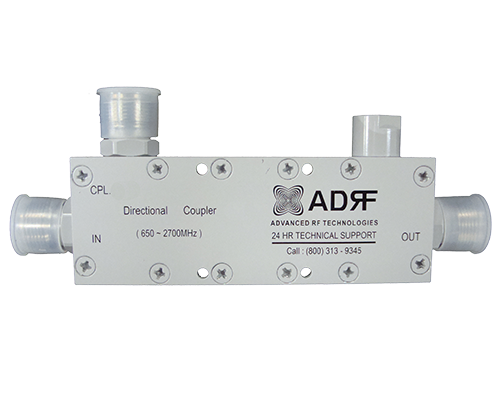

ADRF-DCPL-6/10-N-LPIM

  • 6/10 dB Direction Coupler

  • Frequency Range: 690 ~ 2,700 MHz

  • Passive Intermodulation: 153 dBc @ 2 tone x 43 dBm

  • Impedance: 50 Ω

  • Connector: N Female – N Female

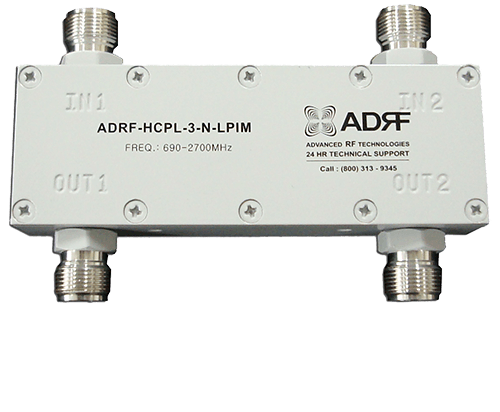

ADRF-HCPL-3-N-LPIM

  • 3dB Hybrid Coupler

  • Frequency Range: 690 ~ 2,700 MHz

  • Insertion Loss: 3.8 dB (Max)

  • Passive Intermodulation: 153 dBc @ 2 tone x 43 dBm

  • Impedance: 50 Ω

  • Connector: N Female – N Female

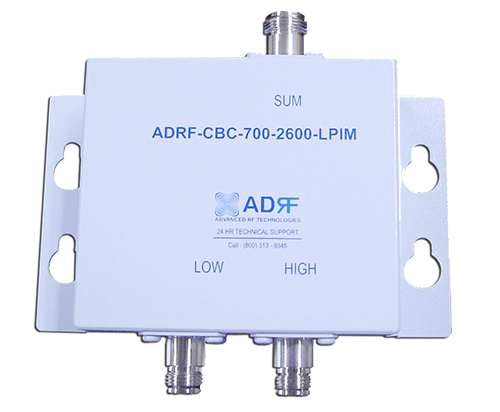

ADRF-CBC-700-2600-LPIM

  • Cross Band Coupler

  • Frequency Range: 698 ~ 940  / 1710 ~ 2690 MHz

  • Insertion Loss: 0.3 dB (Max)

  • Passive Intermodulation: 153 dBc @ 2 tone x 43 dBm

  • Impedance: 50 Ω

  • Connector: N Female – N Female

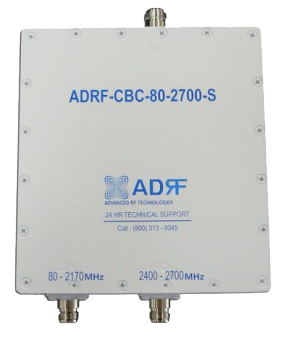

ADRF-CBC-80-2700-S

  • Cross Band Coupler

  • Frequency Range: 80 ~ 2170  / 2400 ~ 2700 MHz

  • Insertion Loss: 0.3 / 0.5 dB (Max)

  • Passive Intermodulation: 153 dBc @ 2 tone x 43 dBm

  • Impedance: 50 Ω

  • Connector: N Female – N Female
